Beneware Medical Equipment Co.,Ltd

l

Product Name

1

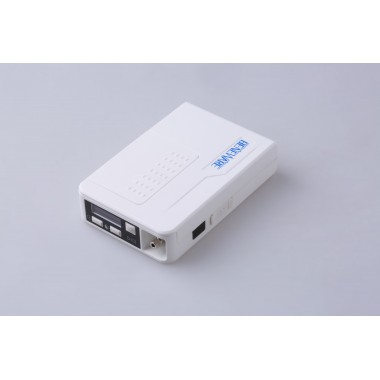

Ambulatory Blood Pressure Monitor –Model ABP-021

l

Certificates

1

CE&ISO approved

l

High Lights

1

Smart inflation and deflation technology.

2

Dual processors for parallel monitoring.

3

Low noise and light weight with OLED display.

4

Data transfer via USB/IrDA/ Bluetooth.

5

Easy to use, powerful and comprehensive analysis tools

6

Auto interpretation function

7

Automatically recognize patient status: Idle/Arrhythmia/Artifact

8

Traceable BP result via ABP pulse waveform display

9

Customizable report template

l

Monitor Specifications

1

Interactive Interface: LCD, Keypad

2

Measurement Range: SBP: 60~255mmHg;  DBP: 30~195mmHg;

3

Pulse Rate: 30~200bpm

4

Accuracy: Pressure: ±3mmHg;  Pulse Rate: ±5%

5

Reproducibility: ≤3mmHg

6

Method of Measurement: Oscillometry with linear deflation

7

Data Interface: USB

8

Monitor Dimension: 113 x 75 x 26 mm

9

Monitor Weight: 168g without battery

10

Ingress Protection: IP22

11

Cuff Size: 20~24cm; 24~32cm; 32~38cm

12

Collision: Keep working in case falling on hard surface from 50mm height in any axial direction

l

Operating Environment

1

Temperature: 5°C to +40°C

2

Humidity: 10~95% RH (non-condensing)

3

Pressure: 800 ~ 1060 hPa

l

Storage and Transport Environment

1.

Temperature: -25°C to +70°C

2.

Humidity: ≤95% RH (non-condensing)

3.

Pressure: 560 ~ 1060hPa

4.

Battery Type: Two AA (LR6) alkaline or high capacity Ni-HM batteries

5.

Supply Voltage: 2.4~3.2V

6.

Service Life: At least 200 measurements

l

Software Features

1

Blood pressure (SBP/DBP/MBP)

2

HR (Heart rate)

3

NNR (Nocturnal reduction rate)

4

Morning surge

5

BP load

6

STDEV (Standard Deviation)

7

CV (Coefficient Of Variation)

8

Patient status (Idle/Arrhythmia/Artifact)

9

AASI (Ambulatory Arterial Stiffness Index)

10

Circadian rhythm

11

Auto interpretation

12

Medication
