Beneware Medical Equipment Co.,Ltd

CardiTrak Holter CT-08S Specifications

 Product Name 1 CardioTrak Holter Analysis Systems--model CT-08s

 Certificates 1 CE&ISO approved; Japan Certificate, Mexico Certificate, CFDA, Australia Certificate, etc

 High Lights 1 Automatic analysis accuracy is up to 99.9% 2 Patented Atrial Fibrillation automatic analysis, accuracy is up to 98% 3 Download one 24 hours recording within 15 seconds. 4 Analyze one record within 30 seconds 5 Smart algorithm-Morphological Recursive Clustering Algorithm 6 Easy to use--powerful and comprehensive analysis tools

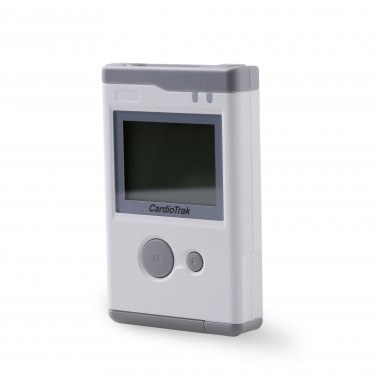

 Recorder Specifications

1 3 channels(5 and 7 leads available)

2 LCD display

3 80g weight

4 86.3 x 56 x 16.5 mm dimension

5 Resolution :16 bits

6 Sample rate: max 10000Hz

7 Recording duration : 24h/48h; 7 days optional

8 Storage: Removable 4GB SD

9 Power supply: One AAA battery(support 7 hours recording)

10 Full scale signal Input: ± 5 mV

11 Data acquisition : ±5mV

12 Recording Bandwidth: 0-50Hz

13 Lead-lines-off detection

14 Implanted pacemaker detection

15 Manual and Automatic start recording

16 Event maker

17 Real time clock

18 Patient ID

19 View recording status in real time

20 View recording remaining time in real time

 Software Features

1 VPB/APB 2 Isolates/Bigeminy/Trigeminy

3 Bradycardia/Tachycardia

4 Pause

5 ST Level &Tendency

6 Mean Heart Rate

7 Maximum Average Heart Rate

8 Minimum Average Heart Rate

9 Superimposition

10 HRV(Frequency &Time domain)

11 AF automatic analysis

 Powerful Tools 1 Template analysis  Distinguish normal, APB, VPB, pacemaker, artifact, questionable templates.   Make templates analysis more quickly and easily. 2 Template fusion  Merge similar templates.   Make the analysis more quickly. 3 Chart Analysis  Automatic AF analysis graph. One-click analysis. Pinpoint AF begin time, duration, min  HR  Max/Min HR. One-click pinpoint Max /Min heart rate  Diagnostic ECG strips  Full disclosure ECG strip
